StrongEdge™ Carbon Fiber Door & Window Corner Reinforcement Kit

Reinforce Critical Corners, Strengthen Stress Weak Points, and Safeguard Structural Integrity

StrongEdge™ incorporates a patented ring-shaped support structure combined with an arc-guided force-distribution design, engineered specifically to reinforce the vulnerable corner zones of doors and windows where cracks most frequently occur. The system effectively disperses stress concentrations and mitigates corner cracking caused by thermal expansion, contraction, and differences in material coefficients, strengthening the load-bearing capacity and stability of these critical areas from the source.

Lightweight, easy to install, and requiring no damage to formwork or existing structures, StrongEdge™ can be quickly applied during construction to provide immediate reinforcement. This significantly enhances the building’s long-term durability and safety—protecting the entire structure by reinforcing its most critical corners.

Catalog
Request
Quotation

Why Do Door and Window Corners Crack Easily?

1.Stress Concentration
Door and window openings interrupt the wall’s original load-bearing path, making the corners the weakest points of the structure. When a building is subjected to floor loads, wind forces, seismic activity, or slight floor deformation, stress accumulates at the four corners of the opening, making cracks highly likely to form in these areas.

2.Thermal Expansion Mismatch
Wall materials (such as plaster or concrete) and window frame materials (such as aluminum, steel, stainless steel, PVC, or wood) have different thermal expansion coefficients. When exposed to sunlight or frequent temperature changes, the differing expansion and contraction rates increase shear stress at the joints and tensile stress at the corners, causing cracks to form over time.South-facing and west-facing windows are especially prone to heat-induced deformation and cracking due to stronger and prolonged sun exposure.

3.Structural Movement & Shrinkage
During the early stages of a building’s service life, concrete shrinkage, minor foundation settlement, and slight floor deformation are common. These movements transfer stress through the wall toward the openings, making cracks more likely to develop around door and window corners.

4.Joint Weakness Between Materials
If door and window installation, sealing, or edge-finishing work is poorly executed—such as insufficient foam density, loosely packed cement or mortar, aging joint sealants, or inadequate fastening points—the joints become more vulnerable to cracking under tensile or shear forces.

5.Seismic or Micro-Movements
Earthquakes or vibrations from heavy vehicles can cause significant displacement at door and window corners, forming micro-cracks that often begin at the corner and gradually spread outward. This is why door and window corners are among the most common locations for cracking after seismic events.

6.Construction Issues
If the window frame is not securely fastened, the mortar mix is improper and causes shrinkage cracks, or if the corners lack reinforcement and the wallboard or plaster thickness is uneven, these factors will further accelerate crack formation.

Potential Consequences of Corner Cracks

1.Progressive Crack Expansion and Reduced Wall Strength
If corner cracks are not addressed promptly, accumulated stress, seismic activity, and minor floor deformation may cause them to extend outward, gradually weakening the structural integrity of the surrounding wall.

2.Moisture Infiltration, Water Leakage, and Mold Growth
Once a crack penetrates the exterior wall, rainwater and moisture can seep in, leading to damp surfaces, bubbling paint, mold growth, and potential indoor air-quality issues. This is also one of the most common causes of household water leakage.

3.Damage to Finishes and Interior Aesthetics
Cracks can continually damage the adhesion of plaster, paint, or tiles, making surface crack lines more noticeable. This not only increases renovation and repair costs but also significantly diminishes the overall interior appearance.

4. Reduced Airtightness, Watertightness, and Sound Insulation
Cracks weaken the structural tightness around the frame, potentially causing window loosening, drafts, water seepage, reduced sound insulation, and even noise or jamming during window operation. Over time, this accelerates window frame aging.

5. Increased Safety Risks
When cracks occur together with structural deformation, they may lead to edge spalling, corner delamination, or falling debris such as dust or cement chips. These hazards require special attention in schools, residential complexes, and other public areas.

6. Higher Long-Term Maintenance Costs
Without proper and fundamental treatment, cracks tend to reappear, increasing repair frequency and overall maintenance costs while reducing the long-term durability and service life of the building.

7. Compromised Exterior Wall Protection and Structural Safety
For exterior walls, expanding corner cracks may damage coatings, waterproof layers, and insulation materials, potentially exposing reinforcement bars to corrosion and eventually affecting overall structural safety.

Corner cracks are not merely cosmetic flaws—they are critical indicators of compromised airtightness, watertightness, durability, and structural integrity.

Product Features

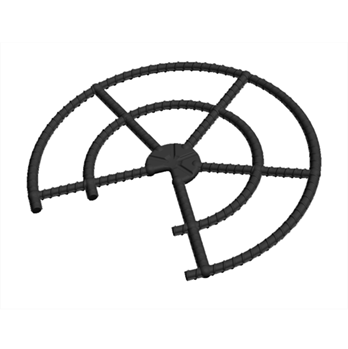

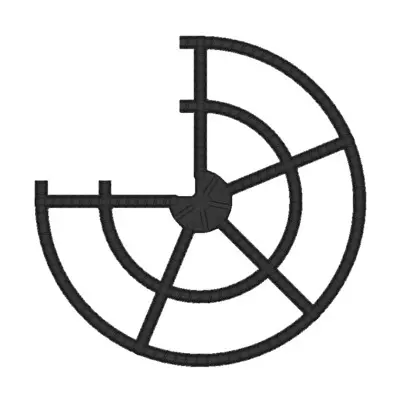

1.Specialized Structural Design
Developed specifically for stress-concentrated door and window corners, the dual-ring spaced structure allows water and cement slurry to pass through easily, improving material compactness. The notch-lock interface enhances bonding strength between the window corner and surrounding mortar.

2.Lightweight, Tough, and Weather-Resistant Composite Material
Manufactured using high-performance composite materials, StrongEdge™ is injection-molded from high-strength recycled carbon fiber blended with polypropylene (PP). This provides excellent toughness, low weight, and superior resistance to rust and corrosion.

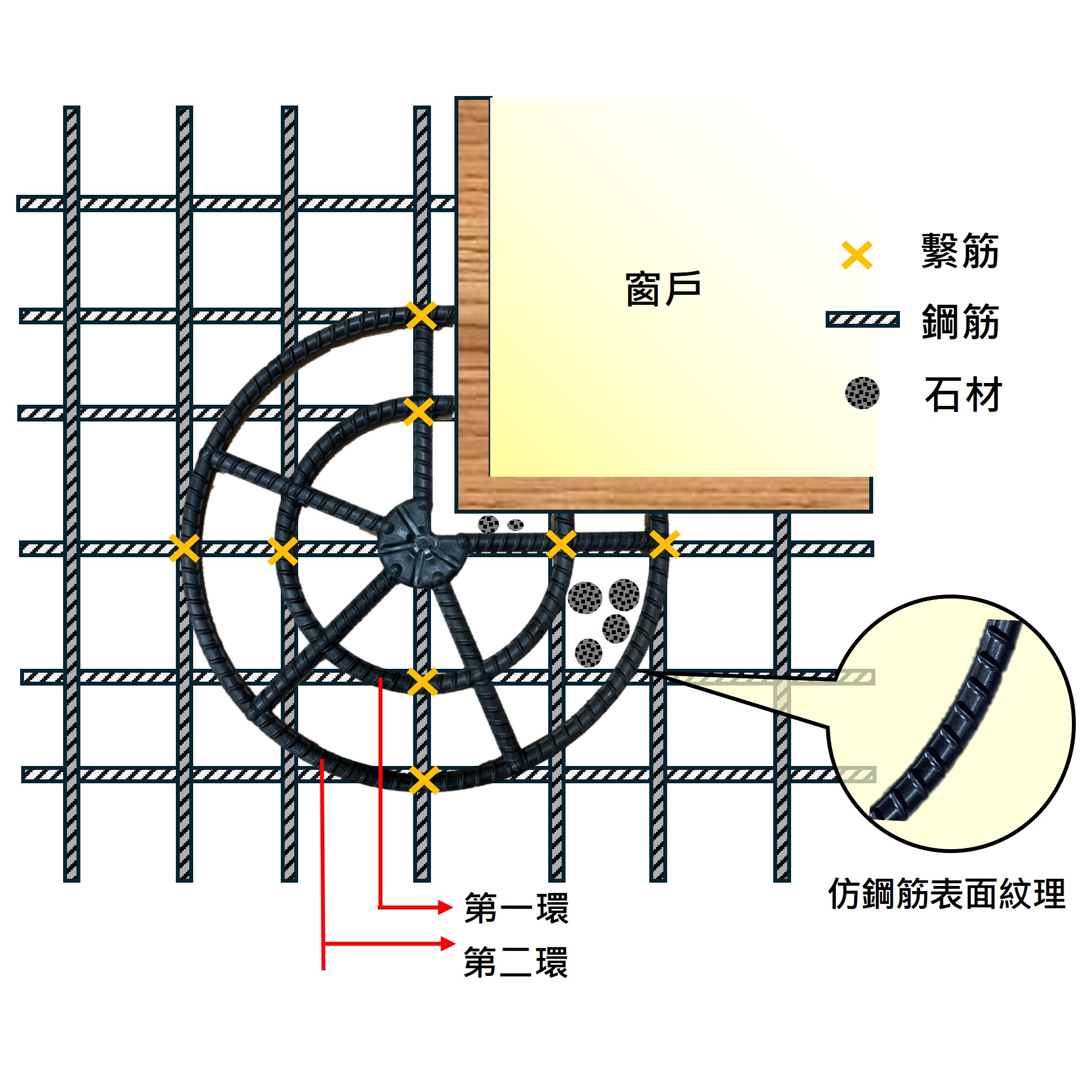

3. Arc-Guided Force-Distribution Design
The first reinforcing ring helps intercept and suppress the formation of initial cracks, effectively dispersing stress concentration and delaying crack propagation. The second ring provides additional resistance to prevent cracks from penetrating the wall, further enhancing overall stiffness and durability.

4. Rebar-Inspired Surface Texture for Enhanced Bonding Strength
Designed with a ribbed pattern similar to deformed steel bars, the textured surface significantly increases the contact area with concrete, improving mechanical interlock and overall structural integration.

5.Fast and Convenient Installation

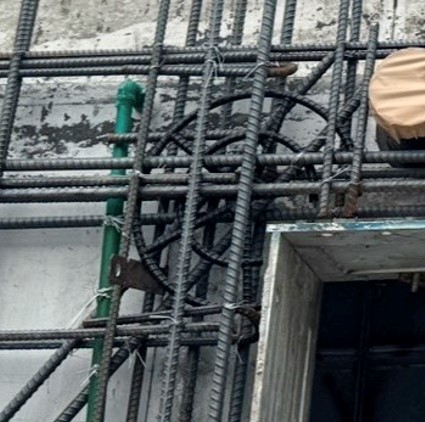

The unit can be directly tied to the dual-layer wall reinforcement without drilling or damaging the formwork. This ensures high installation efficiency, stable placement, and user-friendly application on construction sites.

6.Patented Design
Protected under Patent Application No. 114206226, this product is engineered specifically as a corner reinforcement component for door and window openings in concrete structures. It effectively redistributes corner stresses, prevents crack formation, and enhances the durability and structural safety of buildings.
